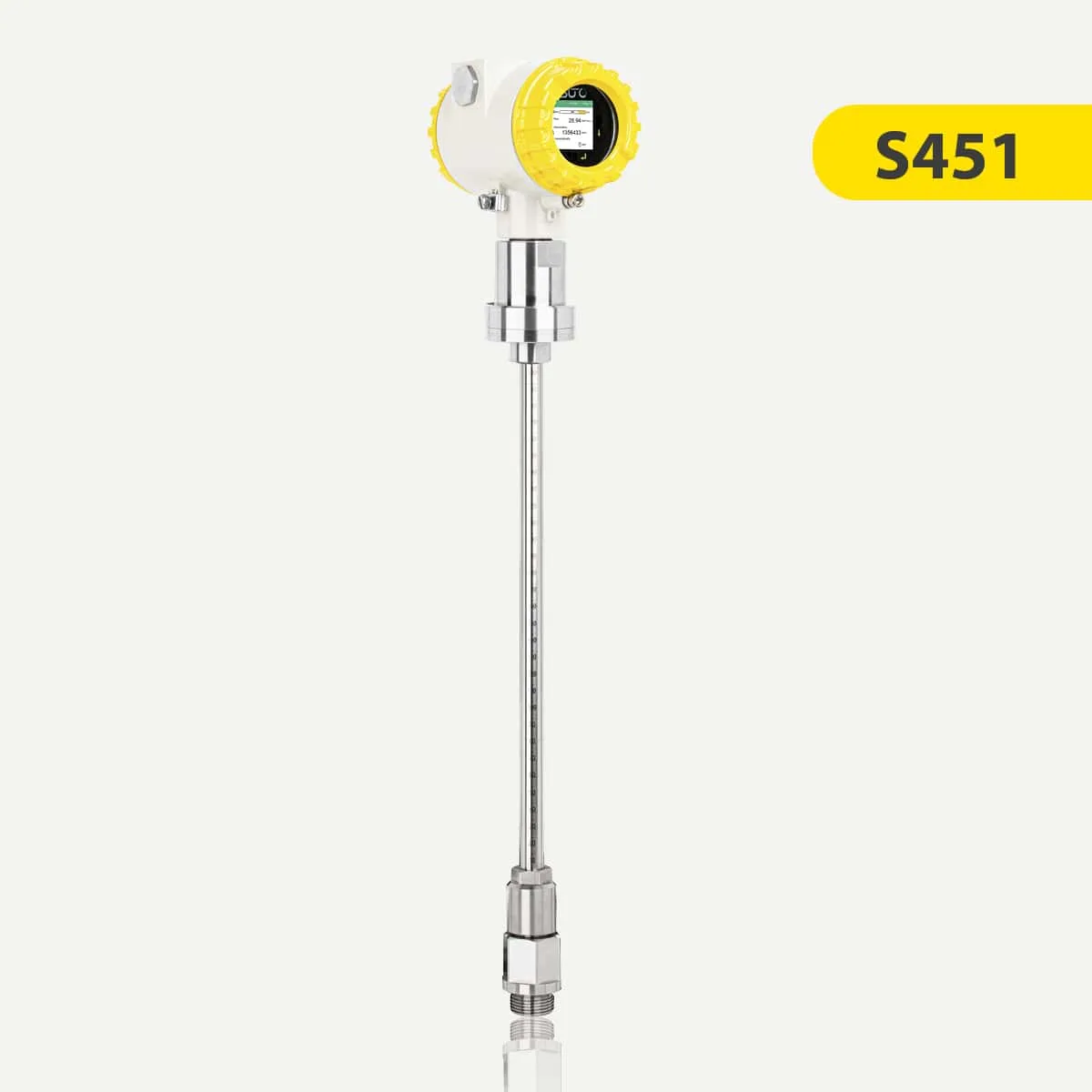

S451 Thermal Mass Flow Meter for Heavy Duty and Ex Applications

Description

The S451 Compressed Air Flow Meter is a robust and highly accurate thermal mass flow meter designed specifically for heavy-duty applications and hazardous environments. With its advanced insertion-type sensor, the S451 is perfect for monitoring compressed air and gas flow in a wide range of industrial settings, including those requiring explosion-proof equipment.

Key Features:
Durable Design: IP67-rated with stainless steel or nickel-plated components for corrosion resistance.
High Accuracy: Measures mass flow, standard flow, consumption, pressure, and temperature.

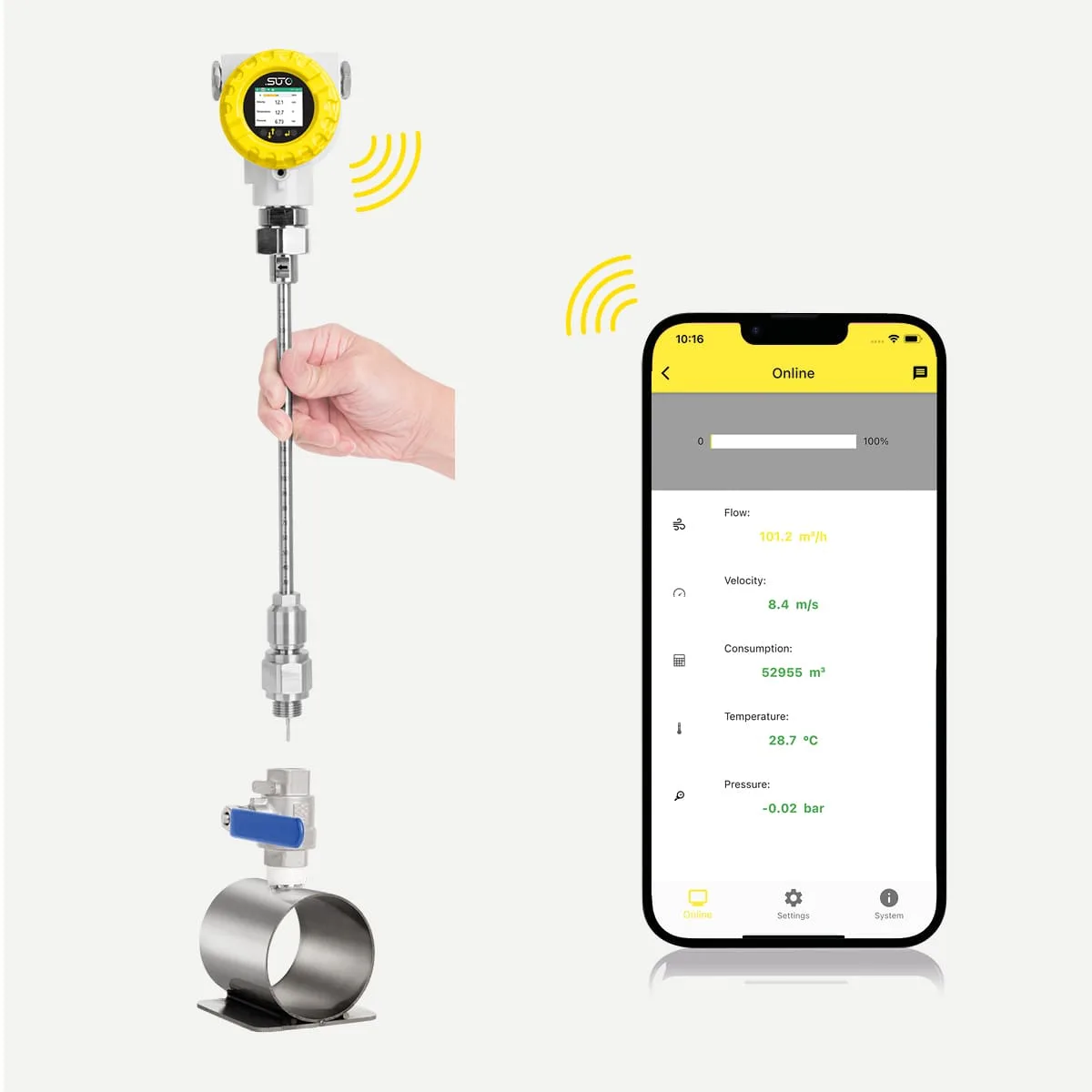

Data Logging: Built-in data logger with wireless access via the S4C-FS app for Android and iOS.

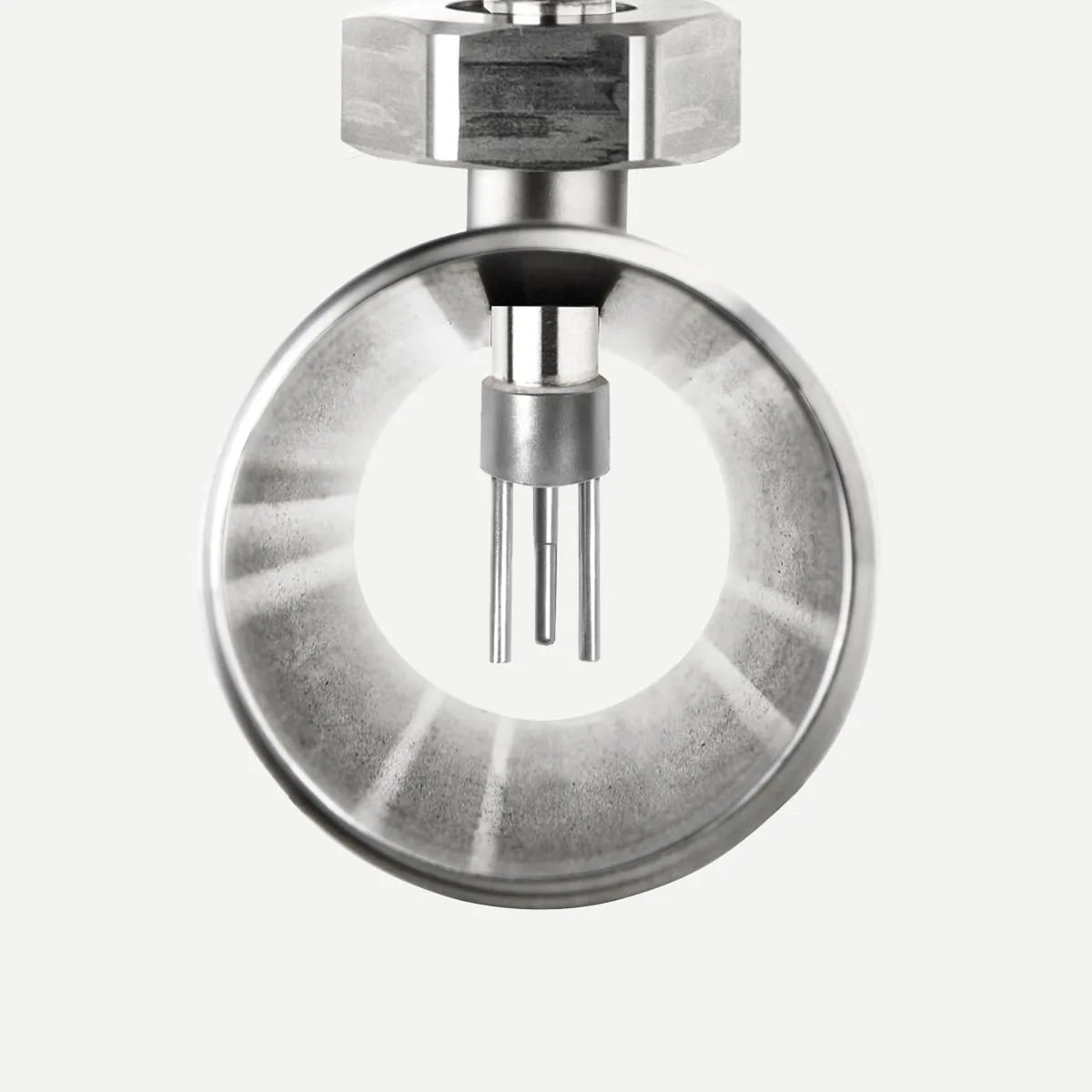

Easy Installation: Insertion sensor installable under pressure through a ball valve; rotatable sensor head for display visibility.
Comprehensive Outputs: Supports Modbus/RTU, Modbus/TCP, 4-20 mA analog outputs, and pulse/alarm outputs.
Explosion Proof: Certified for ATEX, IECEx, and other safety standards.
Vaccum measurement: Integrated absolute pressure sensor special for vacuum application.

Specifications:
Medium: Air, N₂, O₂, CO₂, and non-corrosive gases.
Temperature: -30 to +140°C (Non-Ex), -30 to +90°C (Ex)
Pressure: 0 to 5.0 MPa (Non-Ex), 0 to 1.6 MPa (Ex)
Protection Class: IP67 (standard), IP65 (Ex option)
Ordering Information:
Available in standard configurations with options for different shaft lengths, gas measurements, and pressure ranges.
